Grow As You Go Solar Easy Wall Off-Grid Kits 5-15KVA

Store/Off-Grid Systems/Grow As You Go Solar Easy Wall Off-Grid Kits 5-15KVA

Grow As You Go off grid power components Kits - Victron Based Multiplus-II and Quattro Solutions:

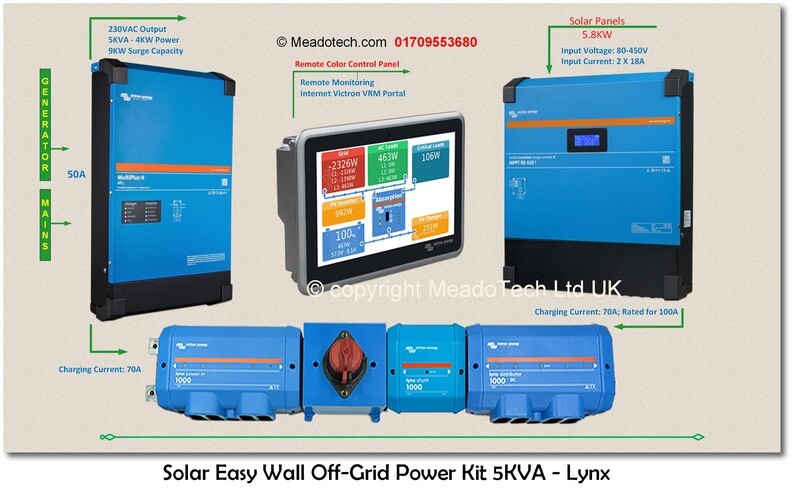

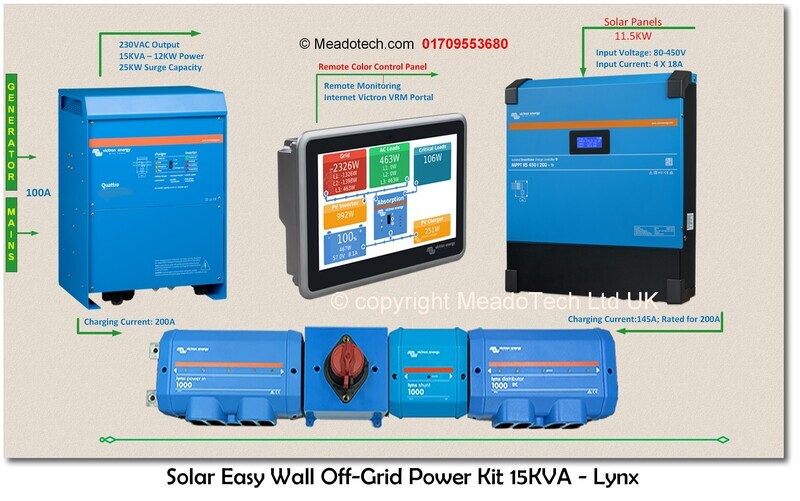

We have put the Solar Easy Wall Off-Grid Power Kits together expanding power limits beyond the standard EasySolar. Each kit combines a high power Victron Multiplus-II/ Quattro Inverter-Charger, High Power MPPT solar charge controller, Remote Monitoring GX Panel, and the Lynx DC-Distribution.

There are no wiring, batteries nor solar panels inclusive. Please contact us for a quote for latest solar panels and battery storage options.

Our kits are expandable in both solar power by adding more MPPT units in parallel, and adding more storage batteries as desired.

Some of the kits (Quattro-based) are expandable in both AC Power by adding more Inverter-Charger units in parallel either for more power or 3-phase applications. Multiplus-II kits are not yet possible to connect parallel units except the 48V 5KVA model.

The product is easy to install, with a minimum of wiring.

To configure a complete solar power off grid solution add solar panels and storage batteries to our Solar Easy Wall Off-Grid Power Kits

Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for a generator, two generators, and/or mains unidirectional charging. The Quattro will automatically connect to the active source.

Two AC Outputs
The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature
The Quattro will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.




Filters

Clear all
Filters
Clear all
Multiplus-II Solar Easy Wall 48V DC to 5000VA 230V AC 70A Charging 70A Solar Charging 50 A ATS  Off Grid Kit
Multiplus-II Solar Easy Wall 48V DC to 5000VA 230V AC 70A Charging 70A Solar Charging 50 A ATS Off Grid Kit
Multiplus-II Solar Easy Wall 48V DC to 5000VA 230V AC 70A Charging 70A Solar Charging 50 A ATS Off Grid Kit
£3,732.00 GBP
Multiplus-II Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Multiplus-II Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS Off Grid Kit
Multiplus-II Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS Off Grid Kit
£5,640.00 GBP
Multiplus-II Solar Easy Wall 48 DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Multiplus-II Solar Easy Wall 48 DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS Off Grid Kit
Multiplus-II Solar Easy Wall 48 DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS Off Grid Kit
£6,032.40 GBP
Multiplus-II Solar Easy Wall 48 DC to 15KVA 230V AC 200A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Multiplus-II Solar Easy Wall 48 DC to 15KVA 230V AC 200A Charging 145A Solar Charging 100A ATS Off Grid Kit
Multiplus-II Solar Easy Wall 48 DC to 15KVA 230V AC 200A Charging 145A Solar Charging 100A ATS Off Grid Kit
£6,840.00 GBP
Quattro Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Quattro Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS Off Grid Kit
Quattro Solar Easy Wall 48V DC to 8000VA 230V AC 110A Charging 145A Solar Charging 100A ATS Off Grid Kit
£5,856.00 GBP
Quattro Solar Easy Wall 48V DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Quattro Solar Easy Wall 48V DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS Off Grid Kit
Quattro Solar Easy Wall 48V DC to 10KVA 230V AC 140A Charging 145A Solar Charging 100A ATS Off Grid Kit
£6,312.00 GBP
Quattro Solar Easy Wall 48V DC to 15000VA 230V AC 200A Charging 145A Solar Charging 100A ATS  Off Grid Kit
Quattro Solar Easy Wall 48V DC to 15000VA 230V AC 200A Charging 145A Solar Charging 100A ATS Off Grid Kit
Quattro Solar Easy Wall 48V DC to 15000VA 230V AC 200A Charging 145A Solar Charging 100A ATS Off Grid Kit
£7,194.00 GBP
